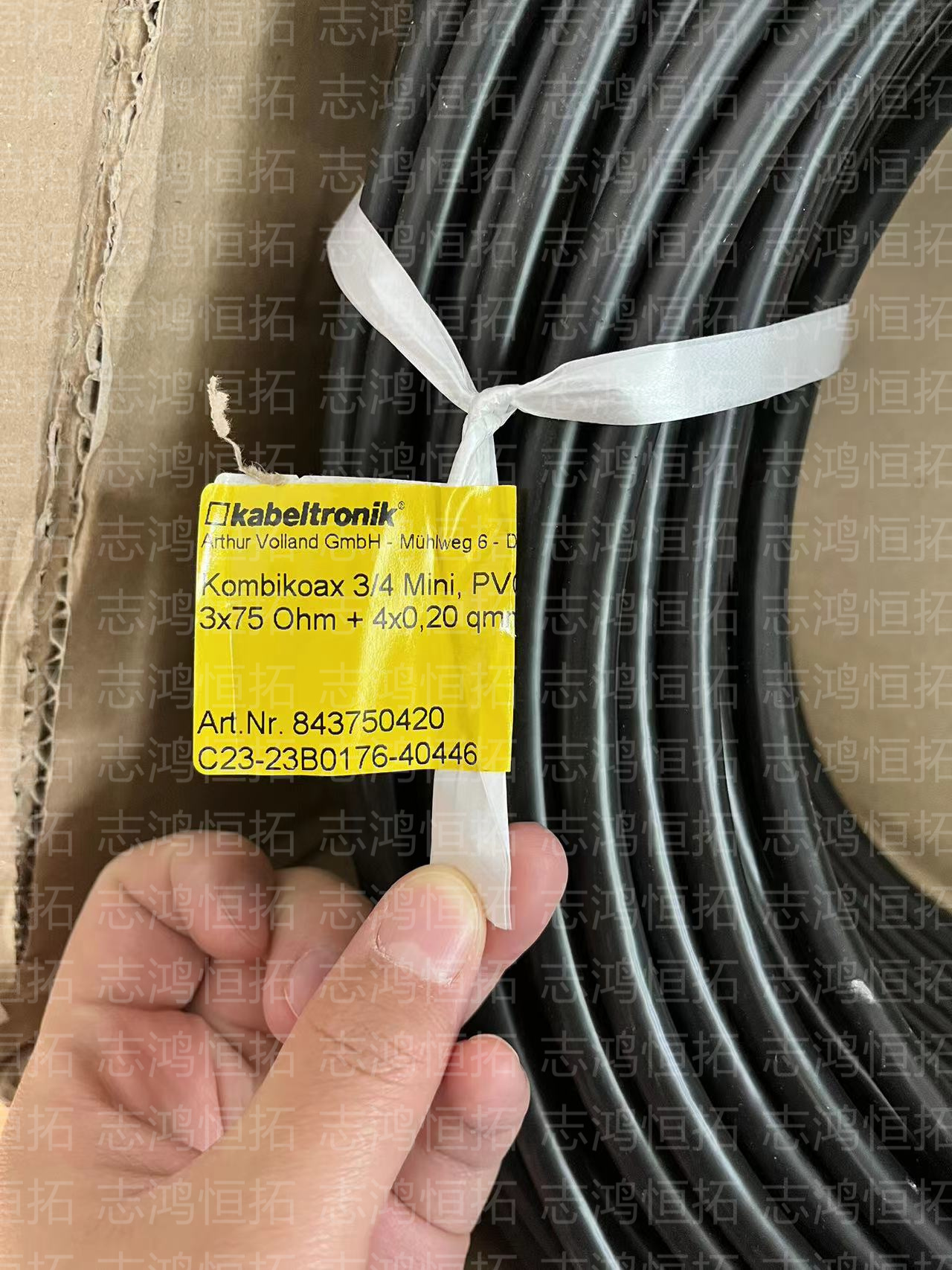

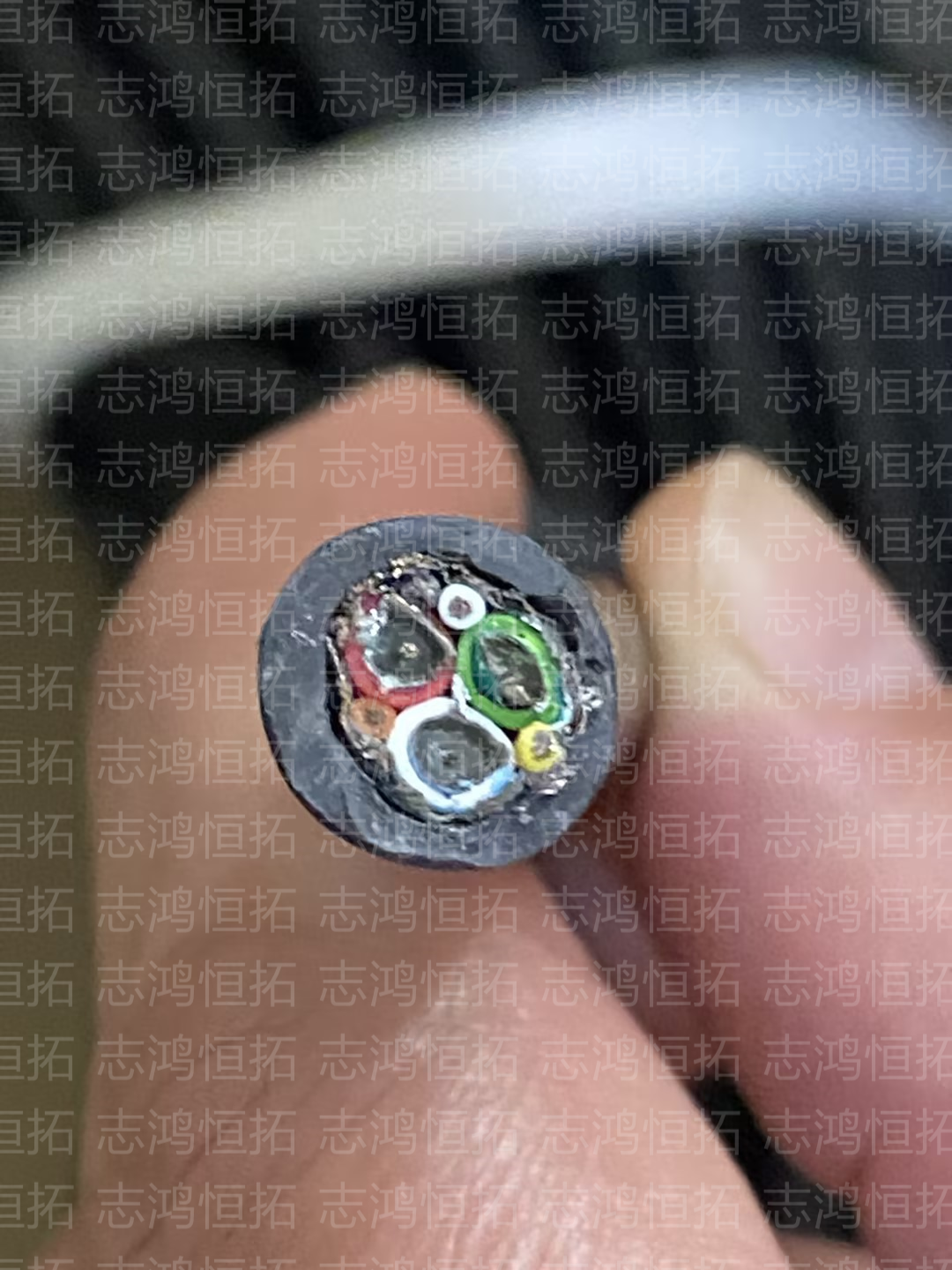

Construction / Signal

Conductor

• tinned stranded copper wire

Structure of conductor

• 7 x 0,20 mm

Cross section

• 0,20 qmm

number of cores

• 4

Core insulation

• PVC

Colour sequence

• wh, bk, or, ye

Construction / Video

Conductor

• tinned stranded copper wire

Structure of conductor

• 7 x 0,13 mm

Cross section

• 0,09 qmm

number of cores

• 3

Core insulation

• Cell-PE

Colour sequence

• rd, wh, gn

Element shield

• tinned copper spiral screen / AL-PT Foil

Element jacket

• PVC, coloured, Ø approx. 2,8 mm

Operating capacity (C/S)

• approx. 75 pF/m

Characteristic impedance

• 75 Ohm +/- 5%

Attenuation

• 1,0 Mhz: approx. 2,3 db/100m
  10,0 Mhz: approx. 6,5 db/100m

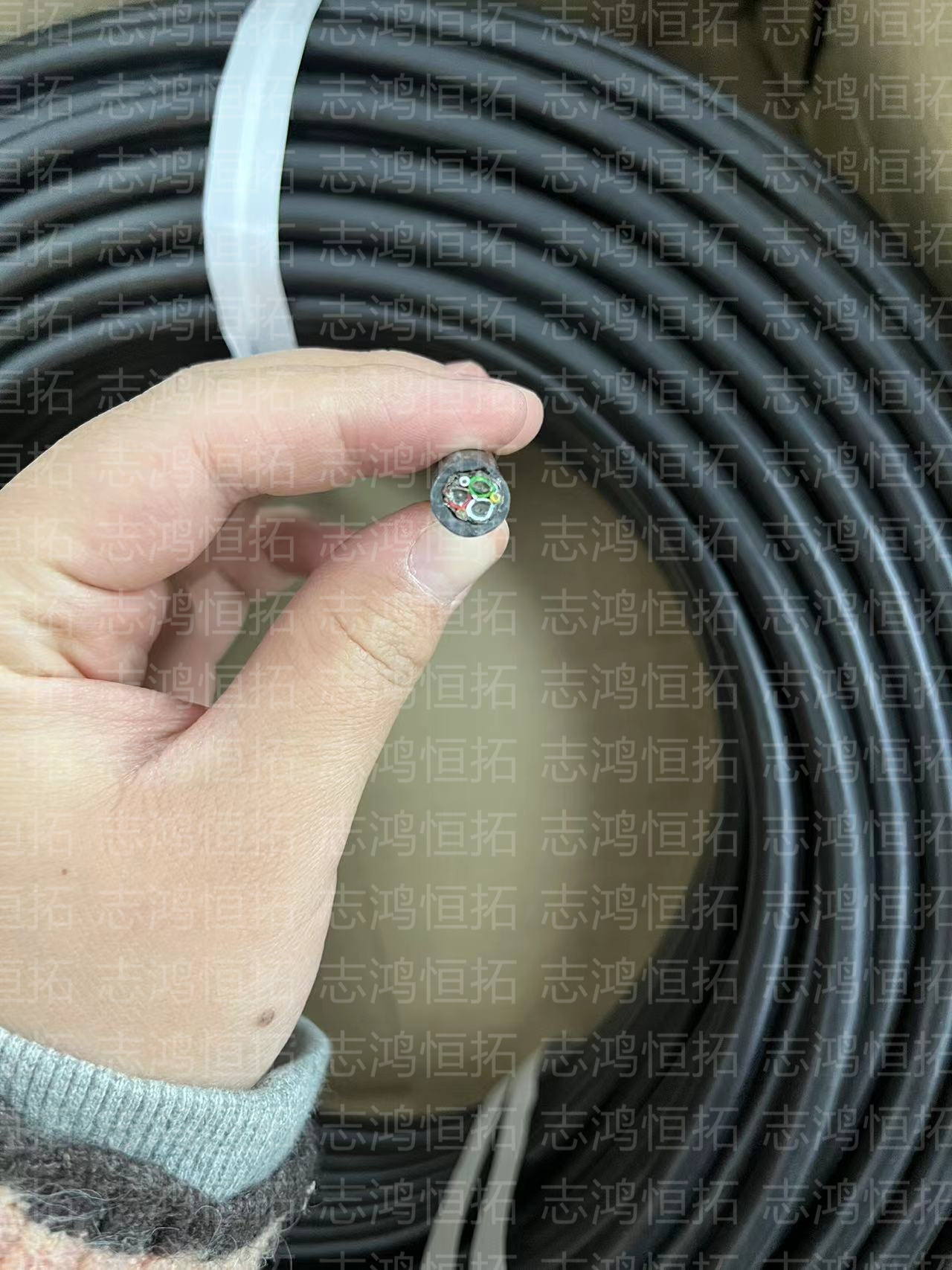

Construction

Overall shield

• AL-PT-Foil + tinned copper braid

Outer jacket

• PVC

Outer jacket colour

• black sim. RAL 9005

More information

Connection-type

• NBTC75BSS5

Technical characteristics

Temperature range

• static: -30 °C to +70 °C
• dynamic: -5 °C to +70 °C

Bending radius

• > 12 x O.D.

Reaction to fire UN/ECE R118

• ISO 14572
