Amana Tool 51524 1/4 英寸螺旋 O 型槽塑料切割铣刀
产品详情
产品概述

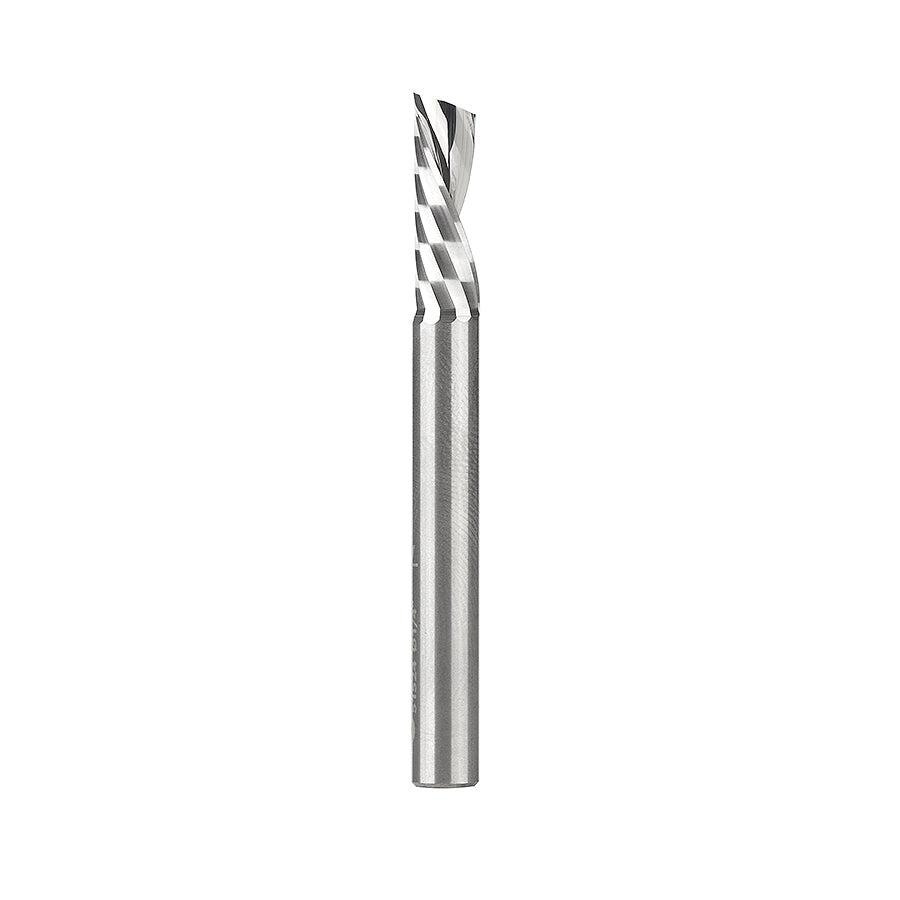

51524, Amana Carbide CNC Spiral 'O' Flute, Plastic Cutting 1/4" Dia x 3/4" x 1/4" Shank Down-Cut
本产品**用于带有自动进给功能的 CNC 机床和修边机。它能产生超洁净、平滑的切口，特别适用于亚克力材料（如 Plexiglas® Lucite®）、其他塑料和木材。刀具严格按照公差制造，采用**硬质合金等级，并通过 Amana 独特的工艺抛光至镜面 finish。设计用于向上排屑，非常适合工业应用和 CNC 机床。左旋螺旋，左切削。
适用材料
Excellent for cutting:
- 塑料/亚克力
- 缩醛和尼龙
- 亚克力石
- 丙烯腈丁二烯苯乙烯 (ABS)
- 铝复合材料 (ACM)
- Alupanel®
- Corian
- Coroplast®**
- 波纹塑料* 如 Correx 板和聚丙烯
- Delrin
- Dibond®
- 挤出亚克力
- 泡沫板
- Gatorfoam®***
- 硬塑料
- 高密度聚乙烯 (HDPE)
- 高密度聚氨酯 (HDU Board)
- 高抗冲聚苯乙烯 (HIPS)
- 用于数字印刷的高抗冲聚苯乙烯 (HIPS)
- King ColorCore® 多色可雕刻聚合物片
- 层压板
- 低密度聚乙烯 (LDPE)
- Lucite®
- 机械/工程塑料
- Perspex® 浇铸亚克力片
- Plexiglas®
- 聚甲基丙烯酸甲酯 (PMMA)
- 聚碳酸酯 (Lexan™)†
- 改性聚对苯二甲酸乙二醇酯 (PETG / PET-G)
- 聚苯乙烯 (PS)
- PVC
- Sintra PVC
- 实体面材
- Teflon®
- 热塑性聚烯烃 (TPO)
- 超高分子量聚乙烯 (UHMWPE)
- 木材
技术规格
| Direction | Down-Cut |
|---|---|
| (D) Diameter | 1/4 |
| (B) Cutting Height | 3/4 |
| (d) Shank | 1/4 |
| Overall Length (L) | 2-1/2 |
| Flutes | 1 |
*Corrugated Plastics such as Correx refers to a wide range of extruded twinwall plastic-sheet products produced from high-impact Polypropylene resin with a similar make-up to corrugated fiberboard. They are used in a variety of applications including boat building packaging signage outdoor advertising and the production of pet cages.
**A soft plastic cardboard made with super soft super flexible PVC.
***Gatorfoam® Foam Board a polystyrene foam board bonded between two layers of Luxcell® wood-fiber veneer.
†Recommendation: Use the slowest suggested feed rates and the shortest bits necessary for cutting and routing Lexan™.
镜面抛光优势
- razor sharp cutting edge
- Effortless chip removal
- Helps prevent chip re-welding
- Extends tool life
- Exceptional cut quality
- Dissipates heat well and
- prevents melting
Maximum RPM: 35,000
