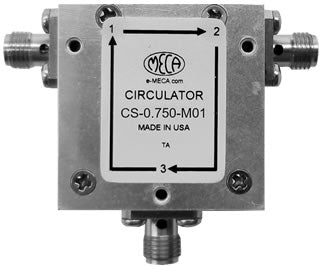

MECA CS-0.750-M01 SMA 母头射频环行器
品牌: MECA Electronics
型号: CS-0.750-M01
MECA CS-0.750-M01 是一款工作频率为 0.7-0.8 GHz 的高功率射频环行器，配备 SMA 母头连接器，平均功率额定值高达 250 瓦。该产品符合 IP67 标准，适用于严苛环境，现货供应或交期短至 4 周。
产品详情
产品概述
RF circulator is a three-port passive device used to control the direction of signal flow in a circuit. MECA offers the CS-0.750-M01 circulator with SMA-Female connectors with average power rating of 250 watts, and a frequency range of 0.7 - 0.8 GHz is readily available and can ship from STOCK to 4 weeks after receipt of your order. IP 67 compliant circulators available.
技术规格图示
重要注意事项
- Circulator power rated into a load mismatch of 1.05:1 all phase angles.
- Additional frequency ranges available, please consult with factory for specific ranges.
- Heat sink temperature must not exceed the maximum operating temperature specified.
- 50 ohms nominal impedance is standard.
