JFW Industries 50FH-XXX-100-3 100W DC-3GHz 固定衰减器

产品概述

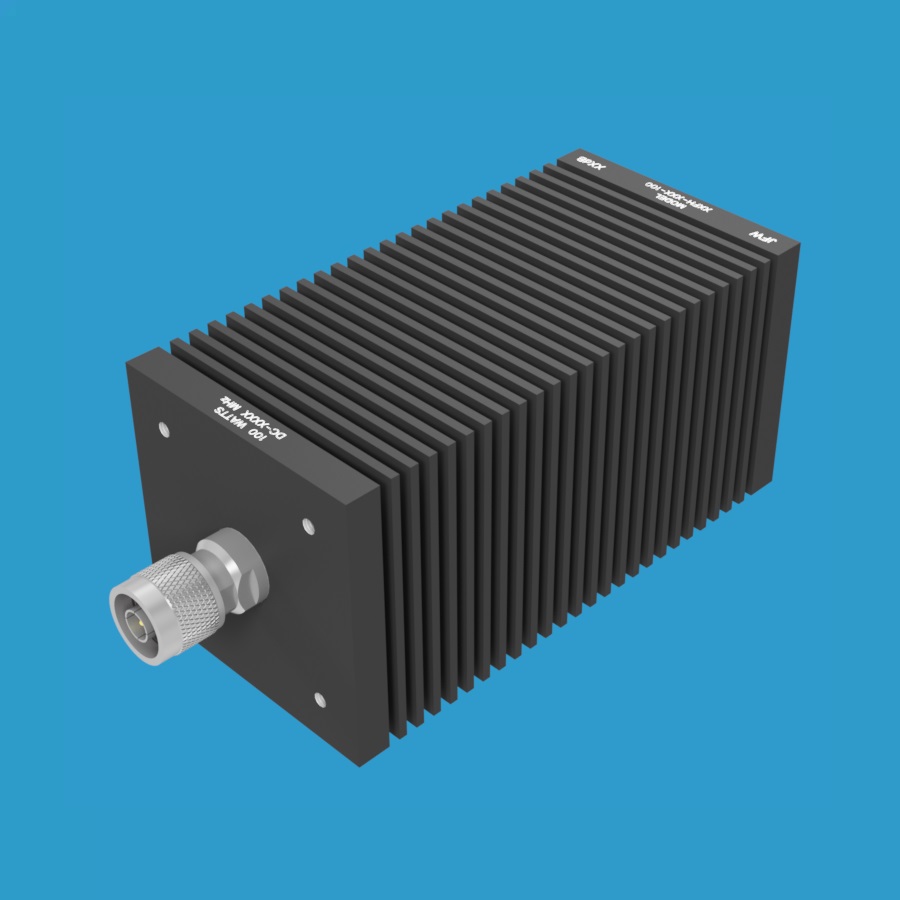

JFW Industries 推出的 50FH-XXX-100-3 是一款50欧姆同轴固定衰减器，最大射频输入功率额定为100W，工作频率范围为DC至3000 MHz。提供1dB至50dB的衰减值可选。散热器采用方形设计，底部和两端均设有安装孔。

型号命名规则

对于型号 50FH-XXX-100-3，请将“XXX”替换为所需的衰减值，并在末尾添加射频连接器类型以生成完整的型号。

标准型号示例

• 50FH-001-100-3 N (1dB，配备 N male/female)
• 50FH-002-100-3 N (2dB，配备 N male/female)
• 50FH-003-100-3 N (3dB，配备 N male/female)
• 50FH-004-100-3 N (4dB，配备 N male/female)
• 50FH-005-100-3 N (5dB，配备 N male/female)
• 50FH-006-100-3 BNC (6dB，配备 BNC male/female)
• 50FH-007-100-3 BNC (7dB，配备 BNC male/female)
• 50FH-008-100-3 BNC (8dB，配备 BNC male/female)
• 50FH-009-100-3 BNC (9dB，配备 BNC male/female)
• 50FH-010-100-3 BNC (10dB，配备 BNC male/female)
• 50FH-011-100-3 TNC (11dB，配备 TNC male/female)
• 50FH-012-100-3 TNC (12dB，配备 TNC male/female)
• 50FH-013-100-3 TNC (13dB，配备 TNC male/female)
• 50FH-014-100-3 TNC (14dB，配备 TNC male/female)
• 50FH-015-100-3 TNC (15dB，配备 TNC male/female)
• 50FH-016-100-3 SMA (16dB，配备 SMA male/female)
• 50FH-017-100-3 SMA (17dB，配备 SMA male/female)
• 50FH-018-100-3 SMA (18dB，配备 SMA male/female)
• 50FH-019-100-3 SMA (19dB，配备 SMA male/female)
• 50FH-020-100-3 SMA (20dB，配备 SMA male/female)
• 50FH-021-100-3 7/16 (21dB，配备 7/16 male/female)
• 50FH-022-100-3 7/16 (22dB，配备 7/16 male/female)
• 50FH-023-100-3 7/16 (23dB，配备 7/16 male/female)
• 50FH-024-100-3 7/16 (24dB，配备 7/16 male/female)
• 50FH-025-100-3 7/16 (25dB，配备 7/16 male/female)
• 50FH-026-100-3 7/16 (26dB，配备 7/16 male/female)
• 50FH-027-100-3 7/16 (27dB，配备 7/16 male/female)
• 50FH-028-100-3 7/16 (28dB，配备 7/16 male/female)
• 50FH-029-100-3 7/16 (29dB，配备 7/16 male/female)
• 50FH-030-100-3 7/16 (30dB，配备 7/16 male/female)
• 50FH-031-100-3 4.3-10.0 (31dB，配备 4.3-10.0 male/female)
• 50FH-032-100-3 4.3-10.0 (32dB，配备 4.3-10.0 male/female)
• 50FH-033-100-3 4.3-10.0 (33dB，配备 4.3-10.0 male/female)
• 50FH-034-100-3 4.3-10.0 (34dB，配备 4.3-10.0 male/female)
• 50FH-035-100-3 4.3-10.0 (35dB，配备 4.3-10.0 male/female)
• 50FH-036-100-3 4.3-10.0 (36dB，配备 4.3-10.0 male/female)
• 50FH-037-100-3 4.3-10.0 (37dB，配备 4.3-10.0 male/female)
• 50FH-038-100-3 4.3-10.0 (38dB，配备 4.3-10.0 male/female)
• 50FH-039-100-3 4.3-10.0 (39dB，配备 4.3-10.0 male/female)
• 50FH-040-100-3 4.3-10.0 (40dB，配备 4.3-10.0 male/female)
• 50FH-041-100-3 4.1-9.5 (41dB，配备 4.1-9.5 male/female)
• 50FH-042-100-3 4.1-9.5 (42dB，配备 4.1-9.5 male/female)
• 50FH-043-100-3 4.1-9.5 (43dB，配备 4.1-9.5 male/female)
• 50FH-044-100-3 4.1-9.5 (44dB，配备 4.1-9.5 male/female)
• 50FH-045-100-3 4.1-9.5 (45dB，配备 4.1-9.5 male/female)
• 50FH-046-100-3 4.1-9.5 (46dB，配备 4.1-9.5 male/female)
• 50FH-047-100-3 4.1-9.5 (47dB，配备 4.1-9.5 male/female)
• 50FH-048-100-3 4.1-9.5 (48dB，配备 4.1-9.5 male/female)
• 50FH-049-100-3 4.1-9.5 (49dB，配备 4.1-9.5 male/female)
• 50FH-050-100-3 4.1-9.5 (50dB，配备 4.1-9.5 male/female)

非标及混合连接器配置

可根据需求提供非标准和混合射频连接器配置：

• 50FH-003-100-3 N F/F (N female/female)
• 50FH-006-100-3 N M/M (N male/male)
• 50FH-010-100-3 N M/SMA F (N male/SMA female)
• 50FH-020-100-3 7/16 M/N F (7/16 male/N female)
• 50FH-020-100-3 4.1-9.5 M/N F (4.1-9.5 male/N female)
