JFW Industries 50HFFE-XXX-50/18 50W DC-18GHz 同轴固定衰减器

产品概述

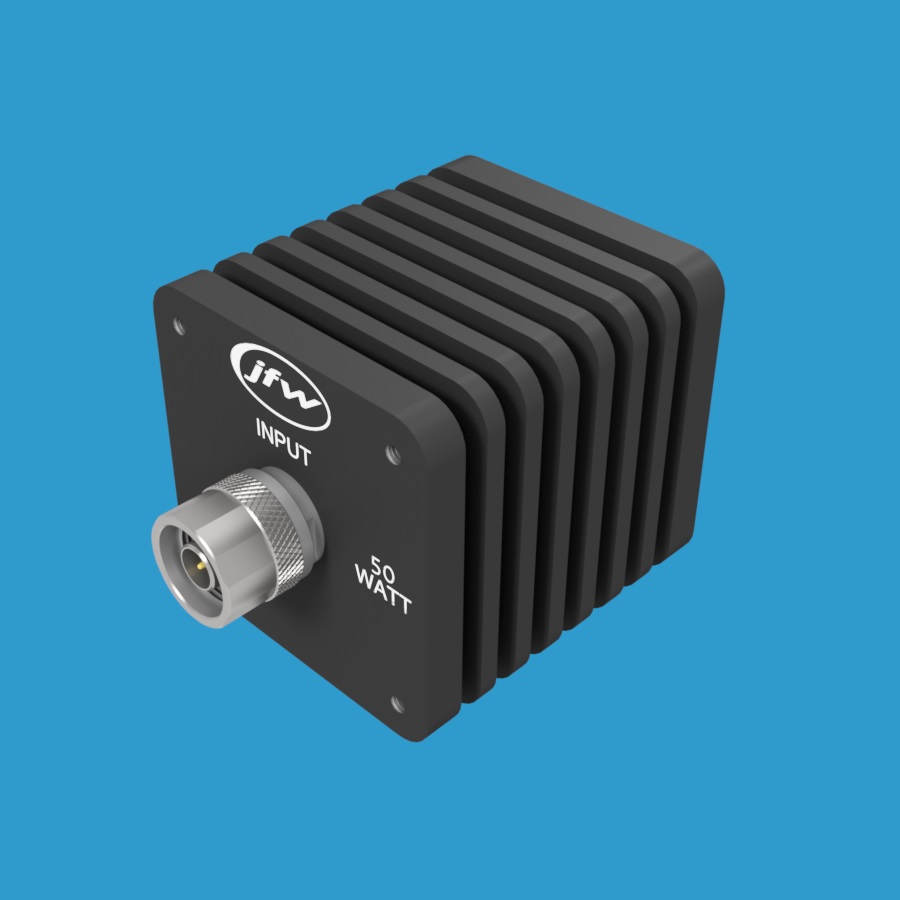

JFW Industries 推出的 50HFFE-XXX-50/18 是一款50欧姆同轴固定衰减器，额定平均输入功率为50W，工作频率范围覆盖DC至18 GHz。该型号提供方形散热器设计，并支持N型或SMA射频连接器，满足多种高功率射频应用需求。

核心参数

• 阻抗：50 Ohm
• 频率范围：DC-18 GHz
• 射频输入功率：50 Watts (平均)
• 衰减量：1-40 dB
• 散热器样式：方形 (Square)
• 射频连接器：N型 或 SMA

型号命名规则

对于 50HFFE-XXX-50/18 型号，请将“XXX”替换为所需的衰减值（如001代表1dB），并在末尾添加射频连接器类型以生成完整型号。如需选配安装支架，请在型号末尾添加“-MBK”。

示例型号

50HFFE-001-50/18SMA (1dB，SMA公/母)
50HFFE-002-50/18SMA (2dB，SMA公/母)
50HFFE-003-50/18SMA (3dB，SMA公/母)
50HFFE-004-50/18SMA-MBK (含可选安装支架)
50HFFE-005-50/18SMA-MBK (含可选安装支架)
50HFFE-006-50/18SMA-MBK (含可选安装支架)
50HFFE-007-50/18SMA (7dB，SMA公/母)
50HFFE-008-50/18SMA (8dB，SMA公/母)
50HFFE-009-50/18SMA (9dB，SMA公/母)
50HFFE-010-50/18SMA (10dB，SMA公/母)
50HFFE-011-50/18SMA F/F (11dB，SMA母/母)
50HFFE-012-50/18SMA F/F (12dB，SMA母/母)
50HFFE-013-50/18SMA F/F (13dB，SMA母/母)
50HFFE-014-50/18SMA F/F (14dB，SMA母/母)
50HFFE-015-50/18SMA F/F (15dB，SMA母/母)
50HFFE-016-50/18SMA F/F (16dB，SMA母/母)
50HFFE-017-50/18SMA F/F (17dB，SMA母/母)
50HFFE-018-50/18SMA F/F (18dB，SMA母/母)
50HFFE-019-50/18SMA F/F (19dB，SMA母/母)
50HFFE-020-50/18SMA F/F (20dB，SMA母/母)
50HFFE-021-50/18SMA (21dB，SMA公/母)
50HFFE-022-50/18SMA (22dB，SMA公/母)
50HFFE-023-50/18SMA (23dB，SMA公/母)
50HFFE-024-50/18SMA (24dB，SMA公/母)
50HFFE-025-50/18SMA (25dB，SMA公/母)
50HFFE-026-50/18SMA (26dB，SMA公/母)
50HFFE-027-50/18SMA (27dB，SMA公/母)
50HFFE-028-50/18SMA (28dB，SMA公/母)
50HFFE-029-50/18SMA (29dB，SMA公/母)
50HFFE-030-50/18SMA (30dB，SMA公/母)
50HFFE-031-50/18SMA (31dB，SMA公/母)
50HFFE-032-50/18SMA (32dB，SMA公/母)
50HFFE-033-50/18SMA (33dB，SMA公/母)
50HFFE-034-50/18SMA (34dB，SMA公/母)
50HFFE-035-50/18SMA (35dB，SMA公/母)
50HFFE-036-50/18SMA (36dB，SMA公/母)
50HFFE-037-50/18SMA (37dB，SMA公/母)
50HFFE-038-50/18SMA (38dB，SMA公/母)
50HFFE-039-50/18SMA (39dB，SMA公/母)
50HFFE-040-50/18SMA (40dB，SMA公/母)
50HFFE-001-50/18N (1dB，N型公/母)
50HFFE-002-50/18N (2dB，N型公/母)
50HFFE-003-50/18N (3dB，N型公/母)
50HFFE-004-50/18N-MBK (含可选安装支架)
50HFFE-005-50/18N-MBK (含可选安装支架)
50HFFE-006-50/18N-MBK (含可选安装支架)
50HFFE-007-50/18N-MBK (含可选安装支架)
50HFFE-008-50/18N (8dB，N型公/母)
50HFFE-009-50/18N (9dB，N型公/母)
50HFFE-010-50/18N (10dB，N型公/母)
50HFFE-011-50/18N F/F (11dB，N型母/母)
50HFFE-012-50/18N F/F (12dB，N型母/母)
50HFFE-013-50/18N F/F (13dB，N型母/母)
50HFFE-014-50/18N F/F (14dB，N型母/母)
50HFFE-015-50/18N F/F (15dB，N型母/母)
50HFFE-016-50/18N F/F (16dB，N型母/母)
50HFFE-017-50/18N F/F (17dB，N型母/母)
50HFFE-018-50/18N F/F (18dB，N型母/母)
50HFFE-019-50/18N F/F (19dB，N型母/母)
50HFFE-020-50/18N F/F (20dB，N型母/母)
50HFFE-021-50/18N (21dB，N型公/母)
50HFFE-022-50/18N (22dB，N型公/母)
50HFFE-023-50/18N (23dB，N型公/母)
50HFFE-024-50/18N (24dB，N型公/母)
50HFFE-025-50/18N (25dB，N型公/母)
50HFFE-026-50/18N (26dB，N型公/母)
50HFFE-027-50/18N (27dB，N型公/母)
50HFFE-028-50/18N (28dB，N型公/母)
50HFFE-029-50/18N (29dB，N型公/母)
50HFFE-030-50/18N (30dB，N型公/母)
50HFFE-031-50/18N (31dB，N型公/母)
50HFFE-032-50/18N (32dB，N型公/母)
50HFFE-033-50/18N (33dB，N型公/母)
50HFFE-034-50/18N (34dB，N型公/母)
50HFFE-035-50/18N (35dB，N型公/母)
50HFFE-036-50/18N (36dB，N型公/母)
50HFFE-037-50/18N (37dB，N型公/母)
50HFFE-038-50/18N (38dB，N型公/母)
50HFFE-039-50/18N (39dB，N型公/母)
50HFFE-040-50/18N (40dB，N型公/母)
