COMPANY

We have been operating since 1961 when the founder, Eugenio Zantelli, started the business in Colorno in the province of Parma. He strongly believed that in this region, characterized by great tradition and technical culture, he would have succeeded in producing the best products in terms of quality and performance able to match the strongest competitors at least..

Tenacity and strategic development processes, both in-house and commercial, favored us from the very start, first in the domestic market and then in the European one. Since the early years, we carried out research and studies to implement a full range of very high pressure thermoplastic hoses for carrying fluids such as solvents, paints, chemicals and gas in full compliance with the main international standards.

Today, thanks to strong industrial investments, ZEC S.p.A. is among the major companies in this industry throughout the world, and can boast a wide range of linear, single, multiple and spiral thermoplastic tubes, standard or special, with technical specifications that allow you to choose inside diameters ranging from 2 to 40 mm, with working pressures from 5 to 1280 bar and extreme working temperatures of between -200°C and +260°C, depending on the model.

We can meet the most complex challenges posed by industrial automation and satisfy any pertinent demand.

ZEC produce a full range of very high pressure thermoplastic tubes for carrying fluids such as solvents, paints, chemicals and gas in full compliance with the main international standards. ZEC is among the major companies in this industry that can boast of a wide range of linear, single, multiple and spiral thermoplastic tubes, standard or special, with technical specifications that allow you to choose inside diameters ranging from 2 to 40 mm, with working pressures from 5 to 1280 bar and extreme working temperatures of between -200°C and +260°C, depending on the model.

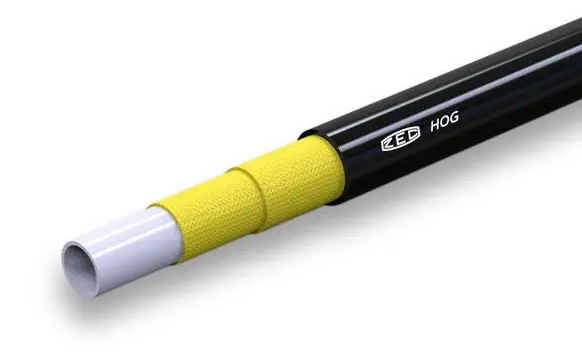

HOG 软管系列专为满足石油天然气/近海/海洋应用的要求而设计，在这些应用中，重量轻、结构紧凑、化学兼容性和耐用性非常重要，尤其是在非常恶劣或极端的环境条件下。该系列可用于水下液压回路或钻井平台、甲醇注入、BOP 安全设备、遥控水下车辆，此外还可用于处理钻井平台/船舶上的兼容气体（空气、氮氧）。技术特点技术结构特点： PA12/PA11 内芯，芳纶纤维编织加固，抗磨损微孔 PU（聚氨酯）外套。应用： HOG 系列软管适用于多元醇、溶剂、涂料、空气、甲醇和所有兼容气体的高压输送。

输送介质液压材料聚氨酯, PU, PA12, 芳纶应用航海其他特性带孔内径

最多: 25.4 mm
(1 in)

最少: 4.8 mm
(0.189 in)

外直径

最多: 37.2 mm
(1.465 in)

最少: 10 mm
(0.394 in)

压力

最多: 1,034 bar
(14,996.902 psi)

最少: 345 bar
(5,003.802 psi)

温度

最多: 55 °C
(131 °F)

最少: -40 °C
(-40 °F)
